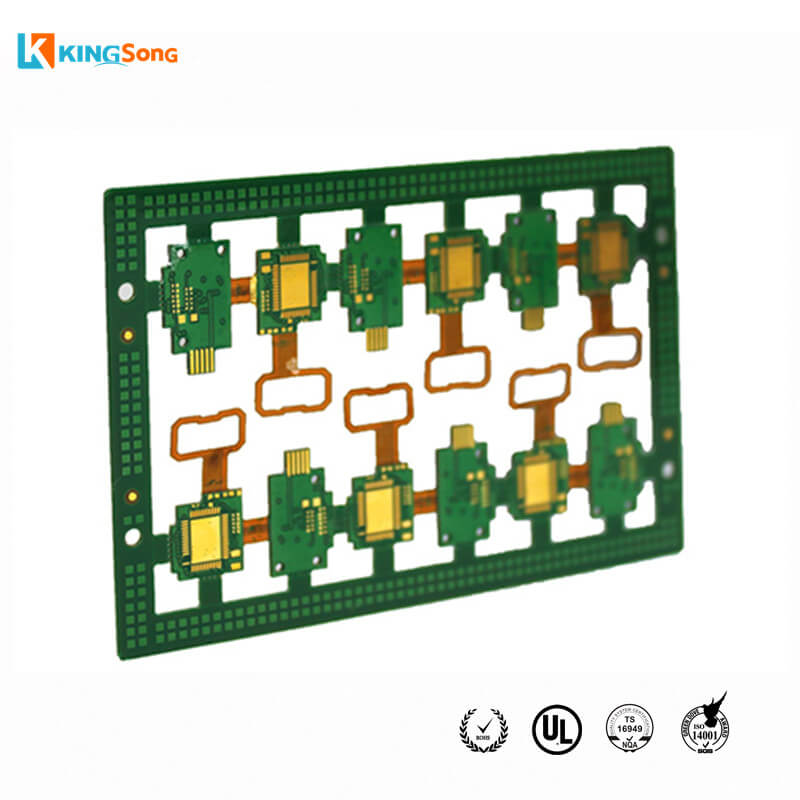

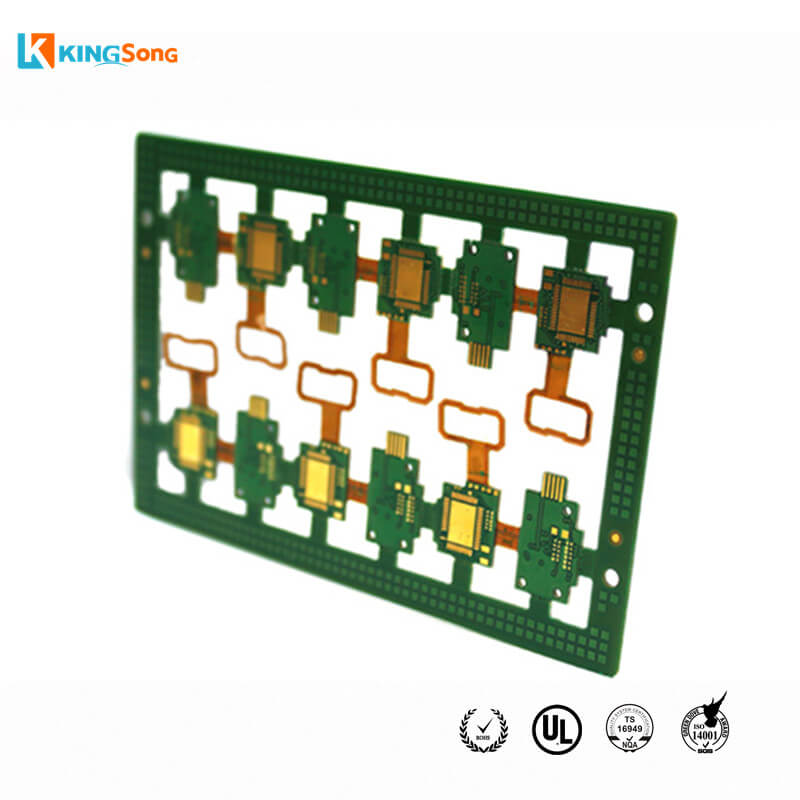

4 Layer FPC + FR4 Combined Rigid Flexible PCB Manufacturer

    Min.Order Quantity: NO
    Supply Ability: 30~50 thousand ㎡/Month
    Service: EMS/OEM/ODM
    Payment Terms: T/T, Paypal, WU, etc.
    Port: Shenzhen

With more than 10 years of PCB manufacturing experience, KingSong provides high-reliability products and provides our customers with high-value, high-quality, and guaranteed quality production services.

4 Layer FPC + FR4 Combined Rigid Flexible PCB Manufacturer
Brand Name KingSong/Customized
Layer 4
Material CCL, PI, PET, PEN, FR-4
Base Material FR4 + Polyimide
Solder mask color Green & yellow cover film
Silkscreen color White
Final Thickness Flex board: 0.002″ – 0.1″ (0.05-2.5mm)
Flex-rigid board: 0.0024″ – 0.16″ (0.06-4.0mm)
Surface Treatment Lead-free: ENG Gold; OSP, Immersion silver, Immersion Tin
Surface Finishing Immersion Gold
Test Way 100% E-Test
Standard IPC-Class2/Class 3
Min Trace Inner: 0.5oz: 4/4mil Outer: 1/3oz-0.5oz: 4/4mil
Min Width /Clearance 1oz: 5/5mil   1oz: 5/5mil
2oz: 5/7mil   2oz: 5/7mil
Min Hole Ring Inner: 0.5oz: 4mil   1oz: 5/5mil   2oz: 5/7mil
Outer: 1/3oz-0.5oz: 4mil   1oz: 5/5mil   2oz: 5/7mil
Copper Thickness 1oz
Board Thickness 0.5mm
Max / Min Insulation Thickness 2mil/0.5mil (50μm/12.7μm)
Min Hole Size and Tolerance Min hole: 8mil
Tolerance: PTH±3mil, NPTH±2mil
Min Slot 24mil x 35mil (0.6×0.9mm)
Solder Mask Alignment Tolerance ±3mil
Silkscreen Alignment Tolerance ±6mil
Silkscreen Line Width 5mil
Gold Plating Nickel: 100μ” – 200μ” Gold: 1μ”-5μ”
Immersion Nickel / Gold Nickel: 100μ” – 200μ” Gold: 1μ”-5μ”
OSP Film: 8μ” – 20μ”
Test Voltage Testing Fixture: 50-300V
Application Industry Consumer Electronics
Application Products Wearable devices
Outer Line width/space 4/3.5mil
Inner Line width/space 5/4mil
Min.Hole Size 0.2mm
Profile Tolerance of Punch Accurate mould: ±2mil
Ordinary mould: ±4mil
Knife mould: ±8mil
Hand-Cut: ±15mil

Delivery time:

Flexible PCB: 5-7 working days,
Rigid-flex PCB: 8-15 working days.

Package:

The inner vacuum packing, Outer standard carton box packing.

Shipping:

1. By DHL, UPS, FedEx, TNT, etc.
2. By sea for mass quantity according to the customer’s requirement.

If you need a quotation for your PCB projects, please provide the following info:

1. Quote, quantity.
2. Gerber file in a 274-x format.
3. Technical requirement or parameters (material, layer, copper thickness, board thickness, surface finishing, solder mask/silkscreen color…).

This rigid-flex PCB is a 4 Layer FPC + FR4 Combined Rigid Flexible PCB Manufacturer, used in Consumer Electronics, some like Wearable devices, A Rigid-flexible Printed Circuit Board with Immersion Gold Surface Finishing is a coating between a component and a bare PCB circuit board, our professional PCB Manufacturer are not only offer rigid-flex PCB board but also PCB, flexible PCB or multilayer flexible PCB, etc.
